Walk On Water designs
Peter Hostetler
Weights & Centers
  CONSTANTS
  SYSTEM WEIGHT CENTER OF GRAVITY MOMENT
  X Y Z LONG'T TRANS VERT
  FRESH WATER 64.90 12.32 -0.97 1.26 799.5 -63.0 81.7
  GRAY WATER 55.15 21.62 -1.71 0.84 1192.3 -94.5 46.3
  BLACK WATER 88.98 17.25 1.60 0.93 1535.3 142.2 83.1
  FUEL 11.00 29.75 1.75 2.13 327.3 19.3 23.4
  BILGE 28.86 25.47 -0.54 0.54 735.3 -15.6 15.7
  VENTILATION 46.20 11.50 0.00 6.18 531.3 0.0 285.4
  NAVIGATION & CONTROLS 15.29 15.21 0.76 26.12 232.5 11.6 399.4
  GALLEY 44.00 20.15 0.00 2.17 886.6 0.0 95.5
  LIGHTING 3.85 16.43 -0.26 5.05 63.3 -1.0 19.4
  ELECTRONICS 200.84 21.33 0.26 0.50 4283.6 52.0 100.0
  RUDDER AND DAGGERBOARD 241.40 17.84 0.00 -1.30 4306.6 0.0 -313.9
  STRUCTURE 3287.04 15.96 0.00 2.26 52466.8 8.5 7434.1
  JOINERY 194.35 13.96 -0.05 2.13 2712.9 -9.8 413.4
  SPARS & RIGGING 255.56 11.95 -0.01 16.52 3055.0 -2.5 4221.5
  ACCESSORIES 216.00 12.62 0.82 2.48 2726.0 178.0 536.0
  SUBTOTAL 4753.42 15.96 0.05 2.83 75854.2 225.2 13440.9
  MARGIN 5% 237.67 15.96 0.05 2.83 3792.7 11.3 672.0
  TOTAL 4991.09 15.96 0.05 2.83
  HEEL ANGLE -0.10
  TRIM ANGLE -0.17
  LIGHT LOAD
  CONSTANTS 4991.09 15.96 0.05 2.83 79646.9 236.5 14112.9
  VARIABLES 487.83 24.31 0.03 2.07 11860.3 16.9 1010.8
  TOTAL 5478.92 16.70 0.05 2.76
  HEEL ANGLE -0.10
  TRIM ANGLE 0.50
  HEAVY LOAD
  CONSTANTS 4991.09 15.96 0.05 2.83 79646.9 236.5 14112.9
  VARIABLES 1258.35 19.84 -0.07 2.09 26211.5 -94.5 2761.4
  TOTAL 6249.43 16.94 0.02 2.70
  HEEL ANGLE -0.03
  TRIM ANGLE 0.72
  DESIGN LOAD
  CONSTANTS 4991.09 15.96 0.05 2.83 79646.9 236.5 14112.9
  VARIABLES 925.17 19.66 -0.25 1.65 19094.6 -242.1 1607.6
  TOTAL 5916.26 16.69 0.00 2.66
  HEEL ANGLE 0.00
  TRIM ANGLE 0.49
  TARGETS 4523.00 16.17 0 ?
  NOTES
  1)  WEIGHT IS IN POUNDS
  2)  X,Y, AND Z AND IN FEET
  3)  LONGITUDINAL, TRANSVERSE AND VERTICAL MOMENTS ARE IN FOOT-POUNDS
  4)  X=0 AT STATION 0 AND AFT IS POSITIVE, Y=0 AT CENTERLINE AND STARBOARD IS POSITIVE, Z=O AT WATERLINE AND UP IS POSITIVE; COLORED LINES BELOW SHOW POSITIVE VALUES.

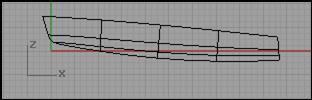

  5) POSITIVE HEEL ANGLES ARE TO PORT, AND POSITIVE TRIM ANGLES ARE TO STERN; PROFILE BELOW SHOWS +5 DEGREES TRIM TO STERN, AND BODY PLAN SHOWS +10 DEGREES TO PORT.
